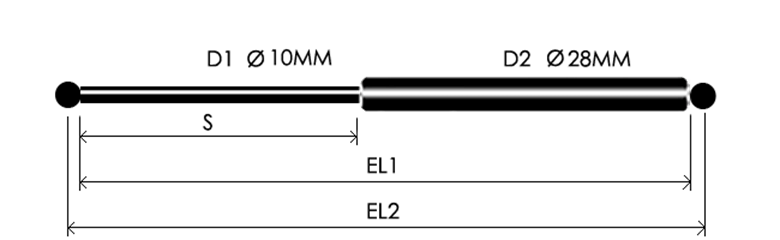

| Rod D1Ø | 10MM | 0.39" | |
|---|---|---|---|
| Cylinder D2Ø | 28MM | 1.10" |
| Stroke lengths (S): | 20-800MM | 0.79" - 31.50" | |
|---|---|---|---|
| Extended length EL1: | Stroke (S)*2 +47MM | 1.85" | shortest possible |
| Extended length EL2: | Stroke (S)*2 +47MM | + connecting parts |
| Force (F1) range: | 30-1300N | 6.75-292Lbs |
|---|
| Rod: | QPQ | ||
|---|---|---|---|
| Cylinder: | Black |
| Damping: | Normal/No/Increased | ||
|---|---|---|---|
| Speed: | Normal/Slow/Fast | ||
| Working temperature: | -30°C +80°C | -22°F +176°F | |
| Progression ( approx.): | 21% |
| Part # 608 | Threaded ends M8x1.25 | ||
|---|---|---|---|
|
|

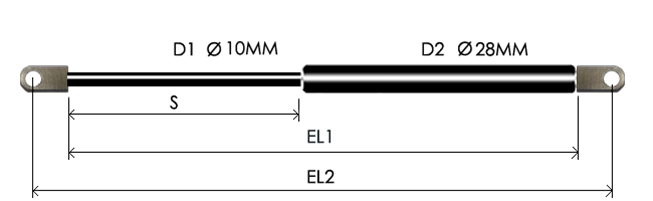

L: 9MM | 0.35" |
| Extended length (EL): Stroke (S)*2 +47MM/1.85" ( shortest possible ) |
| Part # 618 | Eye ends E8 | ||
|---|---|---|---|
|
|
A: M8x1.25 B: Ø8.1MM C: 16MM D: 20MM E: 10MM |
0.319" 0.63" 0.79" 0.39" |
| Extended length (EL): Stroke (S)*2 +87MM/3.43" ( shortest possible ) |
| Part # 628 | Clevis ends C8 | ||
|---|---|---|---|
|
|
d2: M8x1.25 d1: Ø8MM B: 8MM G: 16MM L1: 42MM L2: 32MM |
0.315" 0.315" 0.63" 1.65" 1.26" |
| Extended length (EL): Stroke (S)*2 +111MM/4.37" ( shortest possible ) |
| Part # 638 | Angle ball joint ends A8 | ||
|---|---|---|---|
|
|
d2: M8x1.25 d2/1: M8x1.25 a: 30MM d1: ball Ø13MM L2: 16.5MM |
1.18" 0.65" |
| Extended length (EL): Stroke (S)*2 +107MM/4.21" ( shortest possible ) |
| Part # 638.3 | Angle ball joint ends A8IN | ||
|---|---|---|---|
|
|
|
d2: M8x1.25 d2/1: 5/16-18UNC a: 30MM d1: ball Ø13MM L2: 16.5MM |
1.18" 0.65" |
| Extended length (EL): Stroke (S)*2 +107MM/4.21" ( shortest possible ) |
| Part # 638.4 | Angle ball joint ends A8.4 | ||
|---|---|---|---|
|
|
|
d2: M8x1.25 d2/1: M10x1.50 a: 35MM d1: ball Ø16MM L2: 20MM |
1.38" 0.79" |
| Extended length (EL): Stroke (S)*2 +117MM/4.61" ( shortest possible ) |
| Part # 668 | Rod end bearings RB8 | ||
|---|---|---|---|
|
|
d3: M8x1.25 L1: 36MM d1: Ø8MM L2: 24MM |
1.42" 0.315" 0.94" |
| Extended length (EL): Stroke (S)*2 +119MM/4.69 ( shortest possible ) |
Options: |
|||
|---|---|---|---|

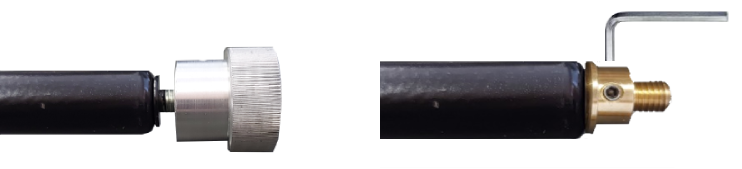

| - Reducible force: | V |  |
|

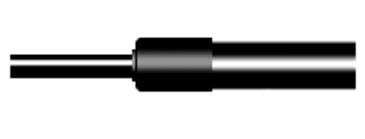

| - Dust boot: | D |  |
|

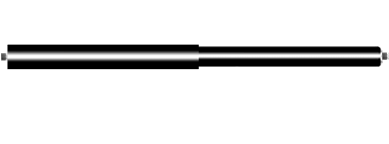

| - Rod protector: | R |  |
Stroke reduction 5MM |

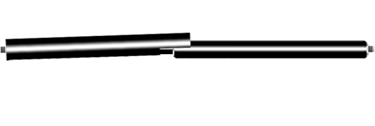

| - Lockable protector: | L |  |
Stroke reduction 5MM |

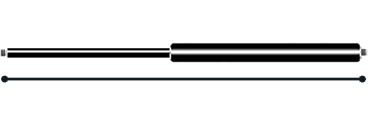

| - Horizontal use: | H |  |
EL1/EL2 increase |
| - Low temperature -45°C / -49°F | A | ||
| - High temperature 200°C / 392°F | B | ||

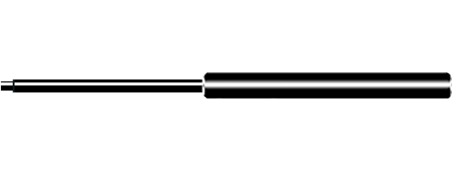

| - No end fittings: |  |
||

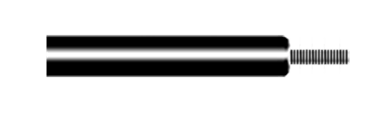

| - Extended thread length: |  |
||
| - Cylinder end with groove: |  |
||
| - Private label | P |
|
|
|||
| Product Inquiry example: | |||
| Part # | Stroke (S) MM/INCH | Length (EL2) MM/INCH | Force N/Lbs | Damping | Speed | Working temp | Options |
|---|---|---|---|---|---|---|---|
| 618 | 250 / 9.84 | 587 / 23.11 | 890N / 200Lbs | Normal | Normal | Normal |
| Extended length (EL) of a gas compression spring is calculated when piston rod is fully extended |
| Force (F1) measured with piston rod 5MM/ 0.20" compressed |
| Progression rate will change depending on cylinder volume |
| Connecting parts are interchangeable, make your own combination or go to product category connecting parts to view more options |
| Please be advised that Extended Length EL2 will change depending on your choice of connecting parts |
