Lockable Gas Compression Springs Rigid locking in both directions

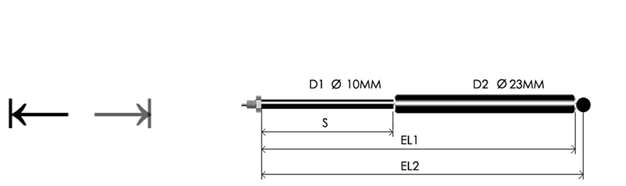

Lockable Gas Compression Springs rigid 10 23
Rod D1Ø 10MM 0.39"
Cylinder D2Ø 23MM 0.91"

Stroke lengths (S): 20-250MM 0.79"-9.84"
Extended length EL1: Stroke (S)*3 + 83MM / 3.27" (shortest possible)
Extended length EL2: Stroke (S)*3 + 83MM / 3.27"
+ cylinder end fitting

Force (F1) range: 50-1300N 11.25-292Lbs

Rod: QPQ
Cylinder: Black

Locking force mechanical properties: 7000N

Speed: Normal/Slow/Fast
Working temperature: -30°C +80°C -22°F +176°F

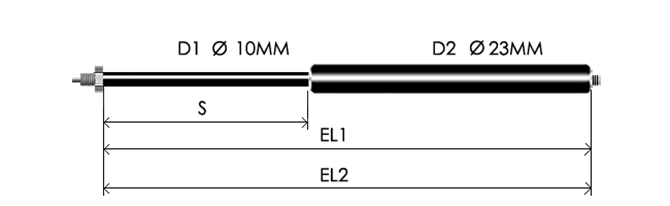

Part # 4605 Cylinder thread M8x1.25
Part # 4605 Part # 4605 cylinder threaded ends L: 9MM 0.35"
Extended length (EL1/EL2): Stroke (S)*3 + 83MM / 3.27" (shortest possible)

Part # 4615 Eye ends E8
Part # 4615 Part # 4615 eye ends A: M8x1.25
B: Ø8.1MM
C: 16MM
D: 20MM
E: 10MM

0.319"
0.63"
0.79"
0.39"
Extended length (EL2): Stroke (S)*3 +103MM / 4.06" (shortest possible)

Part # 4615.3 Eye ends E8.3
Part # 4615.3 Part # 4615.3 eye ends A: M8x1.25
B: Ø8.1MM
C: 16MM
D: 16MM
E: 10MM

0.319"
0.63"
0.63"
0.39"
Extended length (EL2): Stroke (S)*3 + 99MM / 3.90" (shortest possible)

Part # 4615.4 Eye ends E8.3
Part # 4615.4 Part # 4615.4 eye ends A: M8x1.25
B: Ø8.1MM
C: 20MM
D: 16MM
E: 12MM

0.319"
0.79"
0.63"
0.98"
Extended length (EL2): Stroke (S)*3 + 99MM / 3.90" (shortest possible)

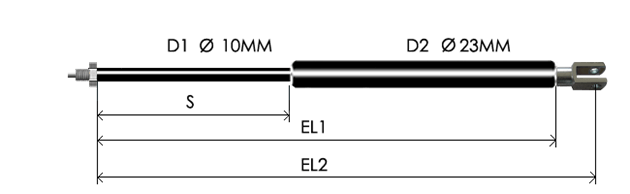

Part # 4625 Clevis end C8
Part # 4625 Part # 4625 clevis end d2: M8x1.25
d1: Ø8MM
B: 8MM
G: 16MM
L1: 42MM
L2: 32MM

0.315"
0.315"
0.63"
1.65"
1.26"
Extended length (EL2): Stroke (S)*2 + 115MM / 4.53" (shortest possible)

Part # 4635 Angle ball joint A8
Part # 4635 Part # 4635 angle ball joint d2: M8x1.25
d2/1: M8x1.25
A: 30MM
d1: ball Ø13MM
L2: 16.5MM


1.18"

0.65"
Extended length (EL2): Stroke (S)*2 +113MM/4.45" (shortest possible)

Part # 4635.3 Angle ball joint A8IN
Part # 4635.3 Part # 4635.3 angle ball joint d2: M8x1.25
d2/1: 5/16-18UNC
A: 30MM
d1: ball Ø13MM
L2: 16.5MM


1.18"

0.65"
Extended length (EL2): Stroke (S)*2 +113MM/4.45" (shortest possible)

Options:

- Valve: V Option valve
- Rod protector: R Option rodprotector Stroke reduction 5MM
- Low temperature -45°C / -49°F A
- High temperature 200°C / 392°F B
- Extended thread length: Option extended thread length
- Cylinder end with groove: Option cylinder end with groove
- Private label P

Product Inquiry example:
Part # Stroke (S) MM/INCH Length (EL2) MM/INCH Force N/Lbs Speed Working temp Options
4615 250 / 9.84 853 / 33.58 300N / 68Lbs Normal Normal
Extended length (EL2) of a lockable gas compression spring is measured with rod fully extended and will change depending on type of actuator head. See category release systems for more information.
Thread piston rod: MF10x1x19MM.
Force (F1) measured with piston rod 5MM/ 0.20" compressed.
Progression rate will change depending on cylinder volume.
Connecting parts are interchangeable, go to product category connecting parts to view more options.
Please be adivsed that Extended Length EL2 will change depending on your choice of connecting parts.

An integral part of our customer service is helping customers with finding a replacement gas spring for their application. As we have thousands of numbers on file, we can crossover any brand to our high industrial quality gas springs. Please enter the number you want to crossover without dots/dashes/slashes etc. and our part number will appear. Please be advised that we update this list on a daily basis, should the number you want to crossover does not give a match please contact us and we will be happy to help you.

Search tip: due to a variety of forces in Lbs or N(ewton) just only enter a part number followed by the force. When a part number starts with a 0 (zero) just enter the number you want to cross reference without 0
