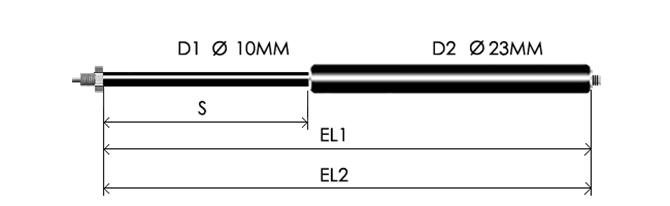

| Rod D1Ø | 10MM | 0.39" | |
|---|---|---|---|
| Cylinder D2Ø | 23MM | 0.91" |
| Stroke lengths (S): | 20-800MM | 0.79"-31.50" | ||
|---|---|---|---|---|
| Progression 35% | Progression 50% | Progression 100% | ||
| Extended length EL1: | Stroke (S)*2.81 + 76MM / 2.99" | Stroke (S)*2.58 + 76MM / 2.99" | Stroke (S)*2.30 + 76MM / 2.99" | (shortest possible) |
| Extended length EL2: | Stroke (S)*2.81 + 76MM / 2.99" | Stroke (S)*2.58 + 76MM / 2.99" | Stroke (S)*2.30 + 76MM / 2.99" | (shortest possible) |
| + cylinder end fitting | + cylinder end fitting | + cylinder end fitting |
| Force (F1) range: | 50-1300N | 11.25-292Lbs |
|---|
| Rod: | QPQ | ||
|---|---|---|---|
| Cylinder: | Black |
| Locking force in extension: | Rigid | ||
|---|---|---|---|
| Locking force in compression: | 3.6*Force |
| Speed: | Normal/Slow/Fast | ||
|---|---|---|---|
| Working temperature: | -30°C +80°C | -22°F +176°F | |
| Progression ( approx.): | 35% / 50% / 100% |
| Part # 2605 | Cylinder thread M8x1.25 | ||
|---|---|---|---|
|
|
L: 9MM | 0.35" |
| Extended Length (EL1/EL2): | Progression 35% | Stroke (S)*2.81 + 96MM / 3.78" | |
| Progression 50% | Stroke (S)*2.58 + 96MM / 3.78" | ||
| Progression 100% | Stroke (S)*2.30 + 96MM / 3.78" | (shortest possible) |
| Part # 2615 | Eye ends E8 | ||
|---|---|---|---|
|
|
A: M8x1.25 B: Ø8.1MM C: 16MM D: 20MM E: 10MM |
0.319" 0.63" 0.79" 0.39" |
| Extended Length (EL2): | Progression 35% | Stroke (S)*2.81 + 96MM / 3.78" | |
| Progression 50% | Stroke (S)*2.58 + 96MM / 3.78" | ||
| Progression 100% | Stroke (S)*2.30 + 96MM / 3.78" | (shortest possible) |
| Part # 2615.3 | Eye ends E8.3 | ||
|---|---|---|---|
|
|
|
A: M8x1.25 B: Ø8.1MM C: 16MM D: 16MM E: 10MM |
0.319" 0.63" 0.63" 0.39" |
| Extended Length (EL2): | Progression 35% | Stroke (S)*2.81 + 92MM / 3.62" | |
| Progression 50% | Stroke (S)*2.58 + 92MM / 3.62" | ||
| Progression 100% | Stroke (S)*2.30 + 92MM / 3.62" | (shortest possible) |
| Part # 2615.4 | Eye ends E8.4 | ||
|---|---|---|---|
|
|
|
A: M8x1.25 B: Ø8.1MM C: 20MM D: 16MM E: 12MM |
0.319" 0.79" 0.63" 0.98" |
| Extended Length (EL2): | Progression 35% | Stroke (S)*2.81 + 92MM / 3.62" | |
| Progression 50% | Stroke (S)*2.58 + 92MM / 3.62" | ||
| Progression 100% | Stroke (S)*2.30 + 92MM / 3.62" | (shortest possible) |
| Part # 2625 | Clevis end C8 | ||
|---|---|---|---|
|
|
d2: M8x1.25 d1: Ø8MM B: 8MM G: 16MM L1: 42MM L2: 32MM |
0.315" 0.315" 0.63" 1.65" 1.26" |
| Extended Length (EL2): | Progression 35% | Stroke (S)*2.81 + 108MM / 4.25" | |
| Progression 50% | Stroke (S)*2.58 + 108MM / 4.25" | ||
| Progression 100% | Stroke (S)*2.30 + 108MM / 4.25" | (shortest possible) |
| Part # 2635 | Angle ball joint A8 | ||
|---|---|---|---|
|
|
d2: M8x1.25 d2/1: M8x1.25 A: 30MM d1: ball Ø13MM L2: 16.5MM |
1.18" 0.65" |
| Extended Length (EL2): | Progression 35% | Stroke (S)*2.81 + 106MM / 4.17" | |
| Progression 50% | Stroke (S)*2.58 + 106MM / 4.17" | ||
| Progression 100% | Stroke (S)*2.30 + 106MM / 4.17" | (shortest possible) |
| Part # 2635.3 | Angle ball joint A8IN | ||
|---|---|---|---|
|
|
|
d2: M8x1.25 d2/1: 5/16-18UNC a: 30MM d1: ball Ø13MM L2: 16.5MM |
1.18" 0.65" |
| Extended Length (EL2): | Progression 35% | Stroke (S)*2.81 + 106MM / 4.17" | |
| Progression 50% | Stroke (S)*2.58 + 106MM / 4.17" | ||
| Progression 100% | Stroke (S)*2.30 + 106MM / 4.17" | (shortest possible) |
Options: |
|||
|---|---|---|---|
| - Valve: | V |  |
|
| - Rod protector: | R |  |
Stroke reduction 5MM |
| - Low temperature -45°C / -49°F | A | ||
| - High temperature 200°C / 392°F | B | ||
| - Extended thread length: |  |
||
| - Cylinder end with groove: |  |
||
| - Private label | P |
|
|
|||
| Product Inquiry example: | |||
| Part # | Stroke (S) MM/INCH | Length (EL2) MM/INCH | Force N/Lbs | Speed | Working temp | Options |
|---|---|---|---|---|---|---|
| 2615 | 250 / 9.84 | 665 / 2618 | 300N / 68Lbs | Normal | Normal |
| Extended length (EL2) of a lockable gas compression spring is measured with rod fully extended and will change depending on type of actuator head. See category release systems for more information. |
| Thread piston rod: MF10x1x19MM. |
| Force (F1) measured with piston rod 5MM/ 0.20" compressed. |
| Progression rate will change depending on cylinder volume. |
| Connecting parts are interchangeable, go to product category connecting parts to view more options. |
| Please be adivsed that Extended Length EL2 will change depending on your choice of connecting parts. |
