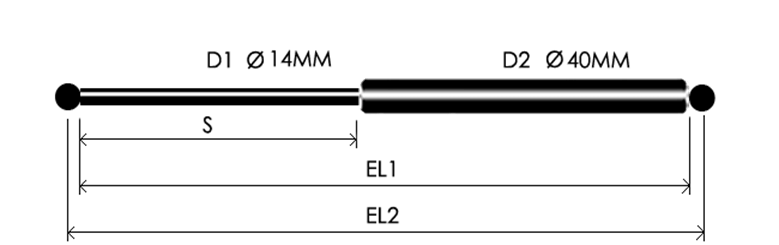

| Rod D1Ø | 14MM | 0.55" | |
|---|---|---|---|
| Cylinder D2Ø | 40MM | 1.57" |
| Stroke lengths (S): | 20-800MM | 0.79" - 31.50" | |
|---|---|---|---|
| Extended length EL1: | Stroke (S)*2 +70MM | 2.76" | shortest possible |
| Extended length EL2: | Stroke (S)*2 +70MM | + connecting parts |
| Force (F1) range: | 100-2600N | 22.50-585Lbs |
|---|
| Rod: | QPQ | ||
|---|---|---|---|
| Cylinder: | Black |
| Damping: | Normal/No/Increased | ||
|---|---|---|---|
| Speed: | Normal/Slow/Fast | ||
| Working temperature: | -30°C +80°C | -22°F +176°F | |
| Progression ( approx.): | 18% |
| Part # 809 | Threaded ends MF14x1.50 | ||
|---|---|---|---|
|
|
L: 14MM | 0.55" |
| Extended length (EL): Stroke (S)*2 +70MM/2.76" ( shortest possible ) |
| Part # 819 | Eye ends E14 | ||
|---|---|---|---|
|
|
A: MF14x1.50 B: Ø14.1MM C: 25MM D: 40MM E: 14MM |
0.555" 0.98" 1.57" 0.55" |
| Extended length (EL): Stroke (S)*2 +150MM/5.91" ( shortest possible ) |
| Part # 829 | Clevis Ends C14 | ||
|---|---|---|---|
|
|
d2: MF14x1.50 d1: Ø14MM B: 14MM G: 28MM L1: 72MM L2: 56MM |
0.55" 0.55" 1.10" 2.83" 2.20" |
| Extended length (EL): Stroke (S)*2 +182MM/7.17" ( shortest possible ) |
| Part # 839 | Angle ball joint ends A14 | ||
|---|---|---|---|
|
|
d2: MF14x1.50 d2/1: MF14x1.50 a: 45MM d1: ball Ø19MM L2: 28MM |
1.77" 1.10" |
| Extended length (EL): Stroke (S)*2 +160MM/6.30" ( shortest possible ) |
| Part # 869 | Rod end bearings RB14 | ||
|---|---|---|---|
|
|
d3: MF14x1.50 L1: 57MM d1: Ø14MM L2: 36MM |
2.24" 0.55" 1.42" |
| Extended length (EL): Stroke (S)*2 +184MM/7.24" ( shortest possible ) |
Options: |
|
|---|---|
| - Low temperature -45°C / -49°F | A |
| - High temperature 200°C / 392°F | B |
| - Private label | P |
|
|
|||
| Product Inquiry example: | |||
| Part # | Stroke (S) MM/INCH | Length (EL2) MM/INCH | Force N/Lbs | Damping | Speed | Working temp | Options |
|---|---|---|---|---|---|---|---|
| 819 | 250 / 9.84 | 650 / 25.59 | 890N / 200Lbs | Normal | Normal | Normal |
| Extended length (EL) of a gas compression spring is calculated when piston rod is fully extended |
| Force (F1) measured with piston rod 5MM/ 0.20" compressed |
| Progression rate will change depending on cylinder volume |
| Connecting parts are interchangeable, make your own combination or go to product category connecting parts to view more options |
| Please be advised that Extended Length EL2 will change depending on your choice of connecting parts |
An integral part of our customer service is helping customers with finding a replacement gas spring for their application. As we have thousands of numbers on file, we can crossover any brand to our high industrial quality gas springs. Please enter the number you want to crossover without dots/dashes/slashes etc. and our part number will appear. Please be advised that we update this list on a daily basis, should the number you want to crossover does not give a match please contact us and we will be happy to help you.
Search tip: due to a variety of forces in Lbs or N(ewton) just only enter a part number followed by the force. When a part number starts with a 0 (zero) just enter the number you want to cross reference without 0
