| Rod D1Ø | 14MM | 0.55" | |
|---|---|---|---|
| Cylinder D2Ø | 40MM | 1.57" |
| Stroke lengths (S): | 20-600MM | 0.79" - 23.62" | |
|---|---|---|---|
| Retracted length RL: | Stroke + 120MM | 4.72" | (shortest possible) |
| Extended length EL: | Retracted Length + Stroke | + connecting parts |
| X: | 20MM | 0.79" |
|---|
| Force (F1) range: | 200-4000N | 45-900Lbs |
|---|
| Rod: | QPQ | ||
|---|---|---|---|
| Cylinder: | Black |
| Damping: | No | ||
|---|---|---|---|
| Speed: | Normal | ||
| Working temperature: | -30°C +80°C | -22°F +176°F | |
| Progression ( approx.): | 60% |
| Part # 876 | Threaded ends MF14x1.50 | ||
|---|---|---|---|
|
|
L: 14MM | 0.55" |
| Retracted Length (RL): Stroke + 120MM / 4.72" ( shortest possible ) | |||
| Extended length (EL): Stroke*2 + 120MM / 4.72" |

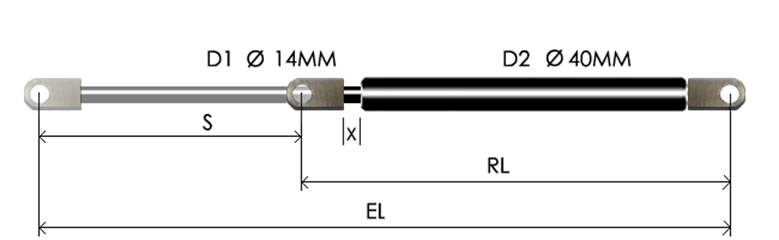

| Part # 876.1 | Eye ends E14 | ||
|---|---|---|---|
|
|
A: MF14x1.50 B: Ø14.1MM C: 25MM D: 40MM E: 14MM |
0.555" 0.98" 1.57" 0.55" |
| Retracted Length (RL): Stroke + 200MM / 7.87" ( shortest possible ) | |||
| Extended length (EL): Stroke*2 + 200MM / 7.87" |
| Part # 876.2 | Clevis ends C14 | ||
|---|---|---|---|
|
|
d2: MF14x1.50 d1: Ø14MM B: 14MM G: 28MM L1: 72MM L2: 56MM |
0.55" 0.55" 1.10" 2.83" 2.20" |
| Retracted Length (RL): Stroke + 232MM / 9.13" ( shortest possible ) | |||
| Extended length (EL): Stroke*2 + 232MM / 9.13" |
| Part # 876.3 | Angle ball joint ends A14 | ||
|---|---|---|---|
|
|
d2: MF14x1.50 d2/1: MF14x1.50 A: 45MM G: 28MM d1: ball Ø19MM L2: 28MM |
1.77" 1.10" |
| Retracted Length (RL): Stroke + 210MM / 8.27" ( shortest possible ) | |||
| Extended length (EL): Stroke*2 + 210MM / 8.27" |
| Part # 876.12 | Rod end bearing RB14 | ||
|---|---|---|---|
|
|
d3: MF14x1.50 L1: 57MM d1: Ø14MM L2: 36MM |
2.24" 0.55" 1.42" |
| Retracted Length (RL): Stroke + 234MM / 9.21" ( shortest possible ) | |||
| Extended length (EL): Stroke*2 + 234MM / 9.21" |
Options: |
|||
|---|---|---|---|
| - | M10 threaded ends and connecting parts. RL and EL will change. Part # starts with 875 | ||
| - Damping: | RL and EL increase 86MM / 3.39" Progression approx. 25% | ||
| - Dust boot: | D |  |
|
| - Rod protector: | R |  |
Stroke reduction 5MM |
| - Low temperature -45°C / -49°F | A | ||
| - High temperature 200°C / 392°F | B | ||
| - Private label | P |
|
|
|||
| Product Inquiry example: | |||
| Part # | Stroke (S) MM/INCH | Retracted Length (RL) MM/INCH | Force N/Lbs | Options |
|---|---|---|---|---|
| 876.1 | 100 / 3.94 | 300MM / 11.81 | 1000N / 225Lbs |
| Extended length (EL) of a gas compression spring is calculated when piston rod is fully extended |
| Force (F1) measured with piston rod 5MM/ 0.20" compressed |
| Progression rate will change depending on cylinder volume |
| Connecting parts are interchangeable, make your own combination or go to product category connecting parts to view more options |
| Please be advised that Extended Length EL2 will change depending on your choice of connecting parts |
