Lockable Gas Compression Springs, rigid in compression, semi rigid in extension

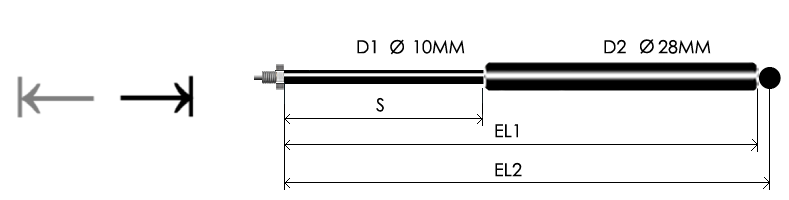

Lockable Gas Compression Springs rigid 10 23
Rod D1Ø 10MM 0.39"
Cylinder D2Ø 28MM 1.10"
Stroke lengths (S): 20-300MM 0.79"-11.81"
Progression 35% Progression 50% Progression 100%
Extended length EL1: Stroke (S)*2.81 + 86MM / 3.39" Stroke (S)*2.63 + 86MM / 3.39" Stroke (S)*2.42 + 86MM / 3.39" (shortest possible)
Extended length EL2: Stroke (S)*2.81 + 86MM / 3.39" Stroke (S)*2.63 + 86MM / 3.39" Stroke (S)*2.42 + 86MM / 3.39" (shortest possible)
+ cylinder end fitting + cylinder end fitting + cylinder end fitting
Force (F1) range: 50-1300N 11.25-292Lbs
Rod: QPQ
Cylinder: Black
Locking force in extension: Rigid
Locking force in compression: 4.76*Force
Speed: Normal/Slow/Fast
Working temperature: -35°C +90°C -31°F +194°F
Progression ( approx.): 35% / 50% / 100%

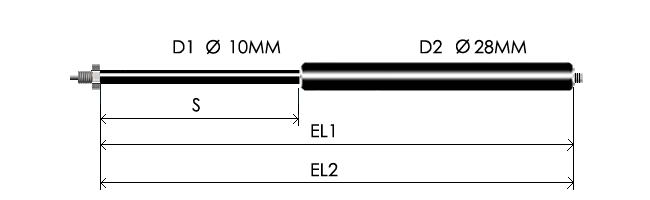

Part # 3608 Cylinder thread
M10x1.50 or M8x1.25
Part # 3608 Part # 3608 cylinder threaded ends M10x1.50 L: 11MM 0.43"
M8x1.25 L: 9mm 0.35"
Extended length (EL2):Progression 35%Stroke (S)*2.81 + 86MM / 3.39"(shortest possible)
50% Stroke (S)*2.63 + 86MM / 3.39"
100% Stroke (S)*2.42 + 86MM / 3.39"

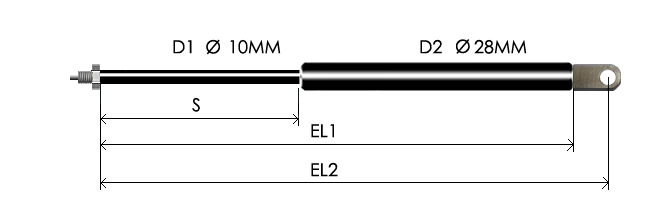

Part # 3618 Eye end E10
Part # 3618 Part # 3618 eye ends A: M10x1.50
B: Ø8.1MM
C: 19MM
D: 25MM
E: 12MM
0.319"
0.75"
0.98"
0.47"
Extended length (EL2): Progression 35% Stroke (S)*2.81 + 111MM / 4.37" (shortest possible)
50% Stroke (S)*2.63 + 111MM / 4.37"
100% Stroke (S)*2.42 + 111MM / 4.37"
Part # 3618.1 Eye end E8
Part # 3618.1 Part # 3618.1 eye ends A: M8x1.25
B: Ø8.1MM
C: 16MM
D: 20MM
E: 12MM
0.319"
0.63"
0.79"
0.39"
Extended length (EL2): Progression 35% Stroke (S)*2.81 + 106MM / 4.17" (shortest possible)
50% Stroke (S)*2.63 + 106MM / 4.17"
100% Stroke (S)*2.42 + 106MM / 4.17"
Part # 3618.5 Fixed eye end
E28.0808
Part # 3618.5 Part # 3618.5 fixed eye ends E28.0808 B: Ø8.1MM
C: 19MM
D: 15MM
E: 8MM 		0.319"
0.75"
0.59"
0.315"
Extended length (EL2): Progression 35% Stroke (S)*2.81 + 101MM / 3.98" (shortest possible)
50% Stroke (S)*2.63 + 101MM / 3.98"
100% Stroke (S)*2.42 + 101MM / 3.98"
Part # 3618.6 Fixed eye end
E28.0810
Part # 3618.6 Part # 3618.6 fixed eye ends E28.0810 B: Ø8.1MM
C: 19MM
D: 15MM
E: 10MM 		0.319"
0.75"
0.59"
0.39"
Extended length (EL2): Progression 35% Stroke (S)*2.81 + 101MM / 3.98" (shortest possible)
50% Stroke (S)*2.63 + 101MM / 3.98"
100% Stroke (S)*2.42 + 101MM / 3.98"
Part # 3618.7 Fixed eye end
E28.0812
Part # 3618.7 Part # 3618.7 fixed eye ends E28.0812 B: Ø8.1MM
C: 19MM
D: 15MM
E: 12MM 		0.319"
0.75"
0.59"
0.47"
Extended length (EL2): Progression 35% Stroke (S)*2.81 + 101MM / 3.98" (shortest possible)
50% Stroke (S)*2.63 + 101MM / 3.98"
100% Stroke (S)*2.42 + 101MM / 3.98"
Part # 3618.8 Fixed eye end
E28.1010
Part # 3618.8 Part # 3618.8 fixed eye ends E28.1010 B: Ø10.2MM
C: 19MM
D: 15MM
E: 10MM 		0.40"
0.75"
0.59"
0.39"
Extended length (EL2): Progression 35% Stroke (S)*2.81 + 101MM / 3.98" (shortest possible)
50% Stroke (S)*2.63 + 101MM / 3.98"
100% Stroke (S)*2.42 + 101MM / 3.98"

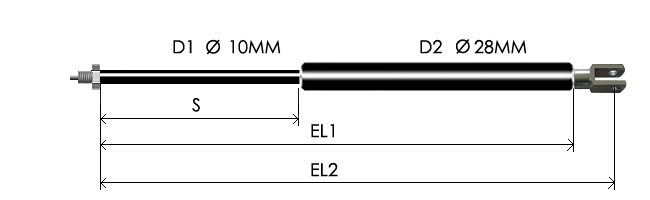

Part # 3628 Clevis end C10
Part # 3628 Part # 3628 clevis end C10 d2: M10x1.50
d1: Ø10MM
B: 10MM
G: 20MM
L1: 52MM
L2: 40MM
0.39"
0.39"
0.79"
20.05"
1.58"
Extended length (EL2): Progression 35% Stroke (S)*2.81 + 126MM / 4.96" (shortest possible)
50% Stroke (S)*2.63 + 126MM / 4.96"
100% Stroke (S)*2.42 + 126MM / 4.96"

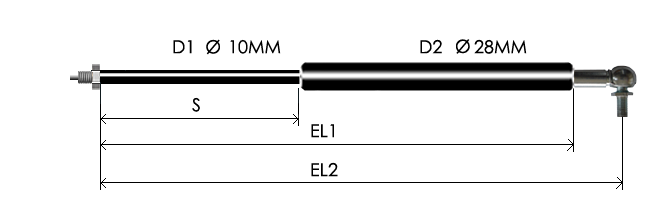

Part # 3638 Angle ball joint A10
Part # 3638 Part # 3638 abgle ball joint A10 d2: M10x1.50
d2/1: M10x1.50
a: 35MM
d1: ball Ø16MM
L2: 20MM

1.38"

0.79"
Extended length (EL2): Progression 35% Stroke (S)*2.81 + 121MM / 4.76" (shortest possible)
50% Stroke (S)*2.63 + 121MM / 4.76"
100% Stroke (S)*2.42 + 121MM / 4.76"

Options:
- Rod protector: R Option rodprotector Stroke reduction 5MM
- Low temperature -45°C / -49°F A
- High temperature 200°C / 392°F B
- Extended thread length: Option extended thread length
- Cylinder end with groove: Option cylinder end with groove
- Private label P
Product Inquiry example:
Part # Stroke (S) MM/INCH Length (EL2) MM/INCH Force N/Lbs Speed Working temp Options
2618.5 250 / 9.84 673 / 26.50 300N / 68Lbs Normal Normal
Extended length (EL2) of a lockable gas compression spring is measured with rod fully extended and will change depending on type of actuator head. See category release systems for more information.
Thread piston rod: MF10x1x19MM.
Force (F1) measured with piston rod 5MM/ 0.20" compressed.
Progression rate will change depending on cylinder volume.
Connecting parts are interchangeable, go to product category connecting parts to view more options.
Please be adivsed that Extended Length EL2 will change depending on your choice of connecting parts.
