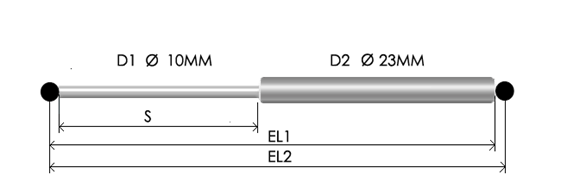

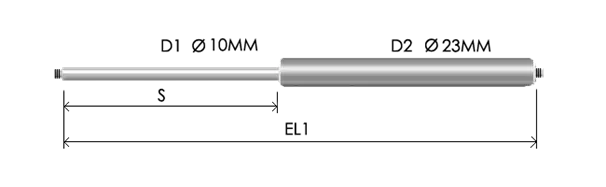

| Rod D1Ø | 10MM | 0.39" | |
|---|---|---|---|
| Cylinder D2Ø | 23MM | 0.91" |
| Stroke lengths (S): | 20-800MM | 0.79"-31.50" | |
|---|---|---|---|
| Extended length EL1: | Stroke (S)*2 +47MM | 1.85" | (shortest possible) |
| Extended length EL2: | Stroke (S)*2 +47MM | + connecting parts |
| Force (F1) range: | 30-1200N | 6.75-270Lbs |
|---|
| Rod: | Stainless Steel 316L | ||
|---|---|---|---|
| Cylinder: | Stainless Steel 316L |
| Damping: | Normal/No/Increased | ||
|---|---|---|---|
| Speed: | Normal/Slow/Fast | ||
| Working temperature: | -30°C +80°C | -22°F +176°F | |
| Progression ( approx.): | 34% |
| Part # 605N | Threaded ends M8x1.25 | ||
|---|---|---|---|
|
|
L: 9MM | 0.35" |
| Extended length (EL): Stroke (S)*2 +47MM/1.85" ( shortest possible ) |

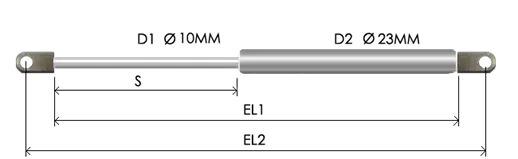

| Part # 615N | Eye ends E8N | ||
|---|---|---|---|
|
|
A: M8x1.25 B: Ø8.1MM C: 16MM D: 20MM E: 10MM |
0.319" 0.63" 0.79" 0.39" |
| Extended length (EL): Stroke (S)*2 +87MM/3.43" ( shortest possible ) |
| Part # 615.3N | Eye ends E8.9N | ||
|---|---|---|---|
|
|
|
A: M8x1.25 B: Ø8.1MM C: 16MM D: 22MM E: 5MM |
0.319" 0.63" 0.87" 0.20" |

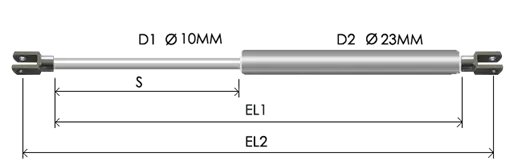

| Extended length (EL): Stroke (S)*2 +91MM/3.58" ( shortest possible ) |
| Part # 625N | Clevis end C8N | ||
|---|---|---|---|
|
|
d2: M8x1.25 d1: Ø8MM B: 8MM G: 16MM L1: 42MM L2: 32MM |
0.315" 0.315" 0.63" 1.65" 1.26" |

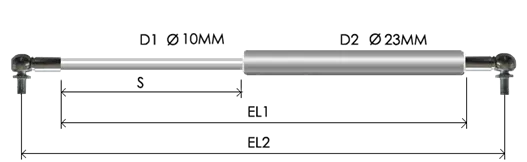

| Extended length (EL): Stroke (S)*2 +111MM/4.37" ( shortest possible ) |
| Part # 635N | Angle ball joint ends A8N | ||
|---|---|---|---|
|
|
d2: M8x1.25 d2/1: M8x1.25 a: 30MM d1: ball Ø13MM L2: 16.5MM |
1.18" 0.65" |
| Extended length (EL): Stroke (S)*2 +107MM/4.21" ( shortest possible ) |
| Part # 635.1N | Angle ball joint ends A8.1N | ||
|---|---|---|---|
|
|
|
d2: M8x1.25 d2/1: 5/16-18UNC a: 20MM d1: ball Ø10MM L2: 16.5MM |
0.79" 0.65" |
| Extended length (EL): Stroke (S)*2 +87MM/3.43" ( shortest possible ) |
| Part # 635.2N | Angle ball joint ends A8.2N | ||
|---|---|---|---|
|
|
|
d2: M8x1.25 d2/1: 5/16-18UNC a: 25MM d1: ball Ø10MM L2: 16.5MM |
0.98" 0.65" |
| Extended length (EL): Stroke (S)*2 +97MM/3.82" ( shortest possible ) |
| Part # 635.3N | Angle ball joint ends A8IN | ||
|---|---|---|---|
|
|
|
d2: M8x1.25 d2/1: 5/16-18UNC a: 30MM d1: ball Ø13MM L2: 16.5MM |
1.18" 0.65" |
| Extended length (EL): Stroke (S)*2 +107MM/4.21" ( shortest possible ) |
| Part # 635.4N | Angle ball joint A8.4N | ||
|---|---|---|---|
|
|
|
d2: M8x1.25 d2/1: M10x1.50 a: 30MM d1: ball Ø13MM L2: 20MM |
1.18" 0.79" |
| Extended length (EL): Stroke (S)*2 +107MM/4.21" ( shortest possible ) |
| Part # 635.5N | Angle ball joint ends A8.5N | ||
|---|---|---|---|
|
|
|
d2: M8x1.25 d2/1: M8x1.25 a: 25MM d1: ball Ø10MM L2: 16.5MM |
0.98" 0.65" |
| Extended length (EL): Stroke (S)*2 +97MM/3.82" ( shortest possible ) |
| Part # 635.7N | Angle ball joint ends A8.7N | ||
|---|---|---|---|
|
|
|
d2: M8x1.25 d2/1: M8x1.25 a: 20MM d1: ball Ø10MM L2: 16.5MM |
0.79" 0.65" |

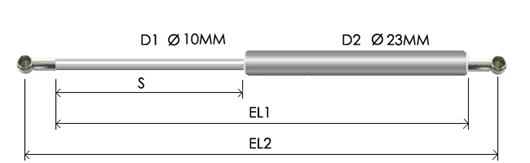

| Extended length (EL): Stroke (S)*2 +87MM/3.43" ( shortest possible ) |
| Part # 665N | Metal ball socket ends B36N | ||
|---|---|---|---|
|
|
d2: M8x1.25 a: 25MM d1: ball Ø10MM |
0.98" |
| Extended length (EL): Stroke (S)*2 +97MM/3.82" ( shortest possible ) |
| Part # 665.1N | Metal ball socket ends B32N | ||
|---|---|---|---|
|
|
|
d2: M8x1.25 a: 20MM d1: ball Ø10MM |
0.79" |
| Extended length (EL): Stroke (S)*2 +87MM/3.43" ( shortest possible ) |
| Part # 665.2N | Metal ball socket ends B38N | ||
|---|---|---|---|
|
|
|
d2: M8x1.25 a: 30MM d1: ball Ø13MM |
1.18" |

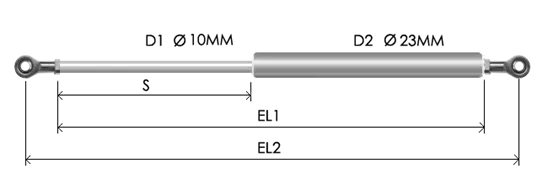

| Extended length (EL): Stroke (S)*2 +107MM/4.21" ( shortest possible ) |
| Part # 667N | Rod end bearings RB8N | ||
|---|---|---|---|
|
|
d3: M8x1.25 L1: 36MM d1: Ø8MM L2: 24MM |
1.42" 0.315" 0.94" |
| Extended length (EL): Stroke (S)*2 +119MM/4.69" ( shortest possible ) |
Options: |
|||
|---|---|---|---|
| - Valve: | V |  |
|
| - Friction: | F |  |
|
| - Dust boot: | D |  |
|
| - Rod protector: | R |  |
Stroke reduction 5MM |
| - Lockable protector: | L |  |
Stroke reduction 5MM |
| - Horizontal use: | H |  |
EL1/EL2 increase |
| - Low temperature -45°C / -49°F | A | ||
| - High temperature 200°C / 392°F | B | ||
| - Foodgrade Oil | H1 | ||
| - Private label | P |
|
|
|||
| Product Inquiry example: | |||
| Part # | Stroke (S) MM/INCH | Length (EL2) MM/INCH | Force N/Lbs | Damping | Speed | Working temp | Options |
|---|---|---|---|---|---|---|---|
| 615N | 250 / 9.84 | 587 / 23.11 | 890N / 200Lbs | Normal | Normal | Normal |
| Extended length (EL) of a gas compression spring is calculated when piston rod is fully extended |
| Force (F1) measured with piston rod 5MM/ 0.20" compressed |
| Progression rate will change depending on cylinder volume |
| Connecting parts are interchangeable, make your own combination or go to product category connecting parts to view more options |
| Please be advised that Extended Length EL2 will change depending on your choice of connecting parts |
