Gas Compression Springs

Gas Compression Springs 6 15
Rod D1Ø 6MM 0.24"
Cylinder D2Ø 15MM 0.59"

Stroke lengths (S): 10-210MM 0.39" - 8.27"
Extended length EL1: Stroke (S)*2 +30MM 1.18" shortest possible
Extended length EL2: Stroke (S)*2 +30MM + connecting parts

Force (F1) range: 10-400N 2.25-90Lbs

Rod: QPQ
Cylinder: Black

Damping: Normal/No/Increased
Speed: Normal/Slow/Fast
Working temperature: -30°C +80°C -22°F +176°F
Progression ( approx.): 28%

Part # 202 Threaded ends M6x1.00
Part # 202 Part # 202 threaded ends L: 6MM 0.236"
Extended length (EL): Stroke (S)*2 +30MM/1.18" ( shortest possible )

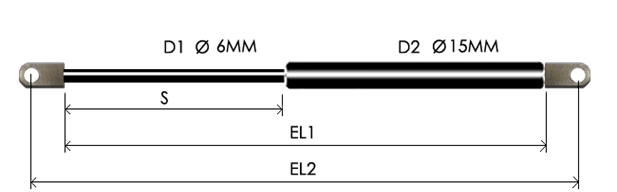

Part # 212 Eye ends E6
Part # 212 Part # 212 eye ends A: M6x1.00
B: Ø6.1MM
C: 11MM
D: 16MM
E: 3MM

0.24"
0.43"
0.63"
0.12"
Extended length (EL2): Stroke (S)*2 +62MM/2.44" ( shortest possible )

Part # 212.2 Eye ends E6.1
Part # 212 Part # 212 eye ends A: M6x1.00
B: Ø6MM
C: 11MM
D: 16MM
E: 6MM

0.24"
0.43"
0.63"
0.236"
Extended length (EL2): Stroke (S)*2 +62MM/2.44" ( shortest possible )

Part # 212Z Eye ends Zamak
Part # 212Z Part # 212Z Zamak eye ends A: M6x1.00
B: Ø6.1MM/0.24"; Ø8.1MM/0.32"; Ø10.1MM/0.40"; Ø12.1MM/0.48"
C1: 19MM
C2: 13MM
D: 16MM
E: 12MM



0.75"
0.51"
0.63"
0.47"
Extended length (EL2): Stroke (S)*2 +62MM/2.44" ( shortest possible )

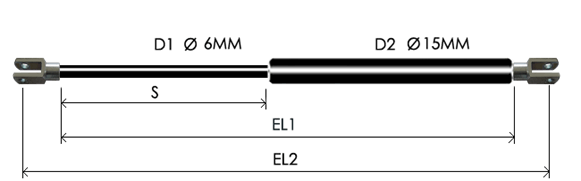

Part # 222 Clevis ends C6
Part # 222 Part # 222 clevis ends d2: M6x1.00
d1: Ø6MM
B: 6MM
G: 12MM
L1: 31MM
L2: 24MM

0.236"
0.236"
0.47"
1.22"
0.94
Extended length (EL2): Stroke (S)*2 +78MM/3.07" ( shortest possible )

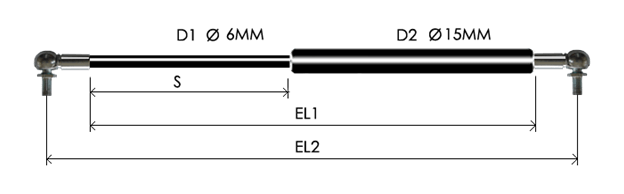

Part # 232 Angle ball joint ends A6
Part # 232 Part # 232 angle ball joint ends d2: M6x1.00
d2/1: M6x1.00
a: 25MM
d1: ball Ø10MM
L2: 12.5MM


0.98"

0.49"
Extended length (EL2): Stroke (S)*2 +80MM/3.15" ( shortest possible )

Part # 232.3 Angle ball joint ends A6.3
Part # 232.3 Part # 232.3 angle ball joint ends d2: M6x1.00
d2/1: 5/16-18UNC
a: 25MM
d1: ball Ø10MM
L2: 16.5MM


0.98"

0.65"
Extended length (EL2): Stroke (S)*2 +80MM/3.15" ( shortest possible )

Part # 232.5 Angle ball joint ends A6.5
Part # 232.5 Part # 232.5 angle ball joint ends d2: M6x1.00
d2/1: M8x1.25
a: 25MM
d1: ball Ø10MM
L2: 16.5MM


0.98"

0.65"
Extended length (EL2): Stroke (S)*2 +80MM/3.15" ( shortest possible )

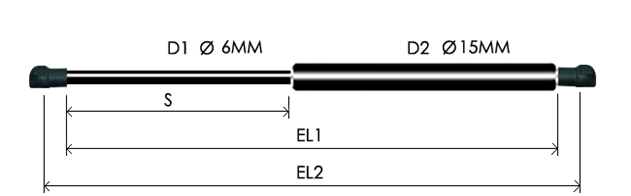

Part # 242 Nylon ball socket ends P6
Part # 242 Part # 242 nylon ball socket ends d2: M6x1.00
a: 18MM
d1: ball Ø10MM

0.71"
Extended length (EL2): Stroke (S)*2 +66MM/2.60" ( shortest possible )

Part # 242.3 Nylon ball joint ends P15
Part # 242.3 Part # 242.3 nylon ball joint ends d2: M6x1.00
d2/1: M8x1.25
a: 18MM
d1: ball Ø10MM
L2: 16.5MM


0.71"

0.65"
Extended length (EL2): Stroke (S)*2 +66MM/2.60" ( shortest possible )

Part # 242.4 Nylon ball joint ends P16
Part # 242.4 Part # 242.4 nylon ball joint ends d2: M6x1.00
d2/1: 5/16-18UNC
a: 18MM
d1: ball Ø10MM
L2: 16.5MM


0.71"

0.65"
Extended length (EL2): Stroke (S)*2 +66MM/2.60" ( shortest possible )

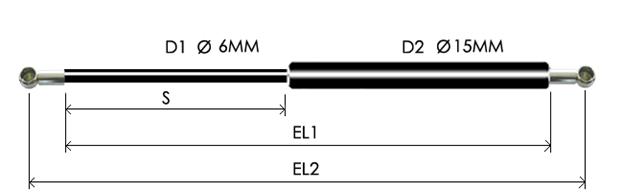

Part # 262 Metal ball socket ends B30
Part # 262 Part # 262 metal ball socket ends d2: M6x1.00
a: 25MM
d1: ball Ø10MM

0.98"
0.71"
Extended length (EL2): Stroke (S)*2 +80MM/3.15" ( shortest possible )

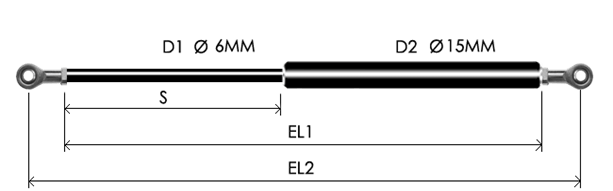

Part # 267 Rod end bearings RB6
Part # 267 Part # 267 rod end bearings d3: M6x1.00
L1: 30MM
d1: Ø6MM
L2: 20MM

1.18"
0.24"
0.787"
Extended length (EL2): Stroke (S)*2 +90MM/3.54" ( shortest possible )

Options:

- Reducible force: V Reducible force
- Friction: F Option friction EL1/EL2 10MM longer
- Dust boot: D Option dustboot
- Rod protector: R Option rodprotector Stroke reduction 5MM
- Lockable protector: L Option lockable rodprotector Stroke reduction 5MM
- Horizontal use: H Option horizontal use EL1/EL2 increase
- Low temperature -45°C / -49°F A
- High temperature 200°C / 392°F B
- Private label P

Product Inquiry example:
Part # Stroke (S) MM/INCH Length (EL2) MM/INCH Force N/Lbs Damping Speed Working temp Options
212 100 / 3.94 254 / 10.00 180N/40 Normal Normal Normal
Extended length (EL) of a gas compression spring is calculated when piston rod is fully extended
Force (F1) measured with piston rod 5MM/ 0.20" compressed
Progression rate will change depending on cylinder volume
Connecting parts are interchangeable, make your own combination with the connecting parts above.
Please be advised that Extended Length EL2 will change depending on your choice of connecting parts

An integral part of our customer service is helping customers with finding a replacement gas spring for their application. As we have thousands of numbers on file, we can crossover any brand to our high industrial quality gas springs. Please enter the number you want to crossover without dots/dashes/slashes etc. and our part number will appear. Please be advised that we update this list on a daily basis, should the number you want to crossover does not give a match please contact us and we will be happy to help you.

Search tip: due to a variety of forces in Lbs or N(ewton) just only enter a part number followed by the force. When a part number starts with a 0 (zero) just enter the number you want to cross reference without 0
