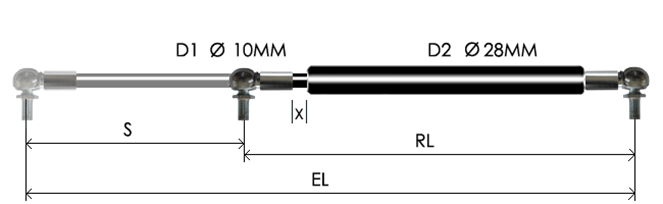

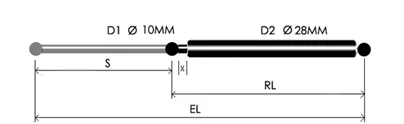

| Rod D1Ø | 10MM | 0.39" | |
|---|---|---|---|
| Cylinder D2Ø | 28MM | 1.10" |
| Stroke lengths (S): | 20-600MM | 0.79" - 23.62" | |
|---|---|---|---|
| Retracted length RL: | 2x Stroke + 83MM | 3.27" | (shortest possible) |
| Extended length EL: | Retracted Length + Stroke | + connecting parts |
| X: | 15MM | 0.59" |
|---|
| Force (F1) range: | 100-1200N | 22.50-270Lbs |
|---|
| Rod: | QPQ | ||
|---|---|---|---|
| Cylinder: | Black |
| Damping: | No | ||
|---|---|---|---|
| Speed: | Normal | ||
| Working temperature: | -30°C +80°C | -22°F +176°F | |
| Progression ( approx.): | 25% |

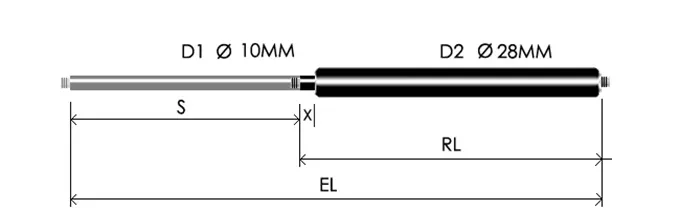

| Part # 677 | Threaded ends M8x1.25 | ||
|---|---|---|---|
|
|
L: 11MM | 0.43" |
| Retracted Length (RL): Stroke x 2 + 83MM / 3.27" ( shortest possible ) | |||
| Extended length (EL): Stroke x 3 + 83MM / 3.27" |
| Part # 677.1 | Eye ends E8 | ||
|---|---|---|---|
|
|
A: M8x1.25 B: Ø8.1MM C: 16MM D: 20MM E: 10MM |
0.319" 0.63" 0.79" 0.39" |
| Retracted Length (RL): Stroke x 2 + 123MM / 4.85" ( shortest possible ) | |||
| Extended length (EL): Stroke x 3 + 123MM / 4.85" |
| Part # 677.2 | Clevis ends C8 | ||
|---|---|---|---|
|
|
d2: M8x1.25 d1: Ø8MM B: 8MM G: 16MM L1: 42MM L2: 32MM |
0.315" 0.315" 0.63" 1.65" 1.26" |
| Retracted Length (RL): Stroke x 2 + 147MM / 5.79" ( shortest possible ) | |||
| Extended length (EL): Stroke x 3 + 147MM / 5.79" |
| Part # 677.3 | Angle ball joint ends A8 | ||
|---|---|---|---|
|
|
d2: M8x1.25 d2/1: M8x1.25 A: 30MM d1: ball Ø13MM L2: 16.5MM |
1.18" 0.65" |
| Retracted Length (RL): Stroke x 2 + 143MM / 5.63" ( shortest possible ) | |||
| Extended length (EL): Stroke x 3 + 143MM / 5.63" |
| Part # 677.12 | Rod end bearing RB8 | ||
|---|---|---|---|
|
|
d3: M8x1.25 L1: 36MM d1: Ø8MM L2: 24MM |
1.42" 0.315" 0.94" |
| Retracted Length (RL): Stroke x 2 + 155MM / 5.63" ( shortest possible ) | |||
| Extended length (EL): Stroke x 3 + 155MM / 5.63" |
| Part # 678 | Threaded ends M10x1.50 | ||
|---|---|---|---|
|
|
|
L: 11MM | 0.43" |
| Retracted Length (RL): Stroke x 2 + 83MM / 3.27" ( shortest possible ) | |||
| Extended length (EL): Stroke x 3 + 83MM / 3.27" |

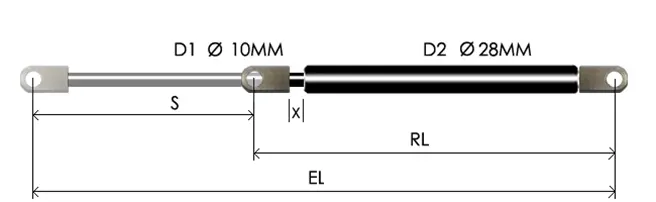

| Part # 678.1 | Eye ends E10 | ||
|---|---|---|---|
|
|
A: M10x1.50 B: Ø8.1MM C: 19MM D: 25MM E: 12MM |
0.319" 0.75" 0.98" 0.47" |
| Retracted Length (RL): Stroke x 2 + 133MM / 5.24" ( shortest possible ) | |||
| Extended length (EL): Stroke x 3 + 133MM / 5.24" |

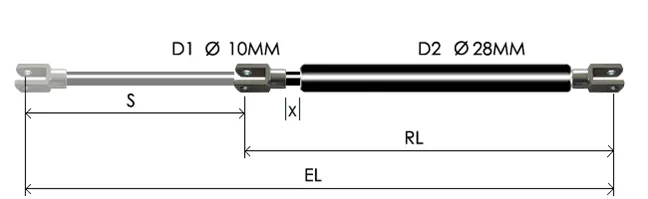

| Part # 678.2 | Clevis ends C10 | ||
|---|---|---|---|
|
|
d2: M10x1.50 d1: Ø10MM B: 10MM G: 20MM L1: 52MM L2: 40MM |
0.39" 0.39" 0.79" 20.05" 1.58" |
| Retracted Length (RL): Stroke x 2 + 163MM / 6.42" ( shortest possible ) | |||
| Extended length (EL): Stroke x 3 + 163MM / 6.42" |
| Part # 678.3 | Angle ball joint ends A10 | ||
|---|---|---|---|
|
|
d2: M10x1.50 d2/1: M10x1.50 A: 35MM d1: ball Ø16MM L2: 20MM |
1.38" 0.79" |

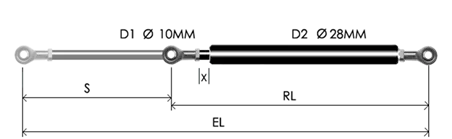

| Retracted Length (RL): Stroke x 2 + 153MM / 6.02" ( shortest possible ) | |||
| Extended length (EL): Stroke x 3 + 153MM / 6.02" |
| Part # 678.12 | Rod end bearing RB10 | ||
|---|---|---|---|
|
|
d3: M10x1.50 L1: 43MM d1: Ø10MM L2: 28MM |
1.69" 0.39" 1.10" |
| Retracted Length (RL): Stroke x 2 + 169MM / 6.65" ( shortest possible ) | |||
| Extended length (EL): Stroke x 3 + 169MM / 6.65" |
Options: |
|||
|---|---|---|---|
| - Dust boot: | D |  |
|
| - Rod protector: | R |  |
Stroke reduction 5MM |
| - Low temperature -45°C / -49°F | A | ||
| - High temperature 200°C / 392°F | B | ||
| - Private label | P |
|
|
|||
| Product Inquiry example: | |||
| Part # | Stroke (S) MM/INCH | Retracted Length (RL) MM/INCH | Force N/Lbs | Options |
|---|---|---|---|---|
| 677 | 100 / 3.94 | 283 / 11.14" | 1000N / 225Lbs |
| Extended length (EL) of a gas compression spring is calculated when piston rod is fully extended |
| Force (F1) measured with piston rod 5MM/ 0.20" compressed |
| Progression rate will change depending on cylinder volume |
| Connecting parts are interchangeable, make your own combination or go to product category connecting parts to view more options |
| Please be advised that Extended Length EL2 will change depending on your choice of connecting parts |
