| Rod D1Ø | 14MM | 0.55" | |
|---|---|---|---|
| Cylinder D2Ø | 28MM | 1.10" |
| Stroke lengths (S): | 20-800MM | 0.79"-31.50" | |
|---|---|---|---|
| Extended length EL1: | Stroke (S)*2 +59MM | 2.32" | (shortest possible) |
| Extended length EL2: | Stroke (S)*2 +59MM | + connecting parts |
| Force (F1) range: | 100-2225N | 22.50-500Lbs |
|---|
| Rod: | Stainless Steel 316L | ||
|---|---|---|---|
| Cylinder: | Stainless Steel 316L |
| Damping: | Normal/No/Increased | ||
|---|---|---|---|
| Speed: | Normal/Slow/Fast | ||
| Working temperature: | -30°C +80°C | -22°F +176°F | |
| Progression ( approx.): | 52% |
| Part # 807N | Threaded ends M10x1.50 | ||
|---|---|---|---|
|
|

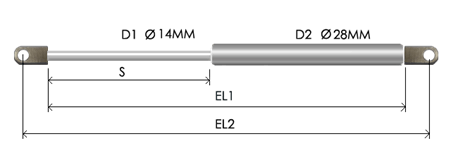

L: 11MM | 0.43" |
| Extended length (EL): Stroke (S)*2 +59MM/2.32" ( shortest possible ) |
| Part # 816N | Eye ends E10N | ||
|---|---|---|---|
|
|
A: M10x1.50 B: Ø8.1MM C: 19MM D: 25MM E: 12MM |
0.319" 0.75" 0.98" 0.47" |
| Extended length (EL): Stroke (S)*2 +109MM/4.29" ( shortest possible ) |
| Part # 826N | Clevis end C10N | ||
|---|---|---|---|
|
|
d2: M10x1.50 d1: Ø10MM B: 10MM G: 20MM L1: 52MM L2: 40MM |
0.39" 0.39" 0.79" 20.05" 1.58" |
| Extended length (EL): Stroke (S)*2 +139MM/5.47" ( shortest possible ) |

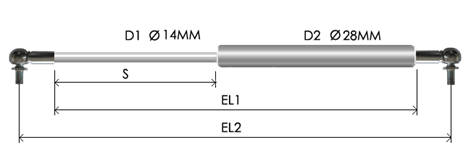

| Part # 836N | Angle ball joint ends A10N | ||
|---|---|---|---|
|
|
d2: M10x1.50 d2/1: M10x1.50 a: 35MM d1: ball Ø16MM L2: 20MM |
1.38" 0.79" |
| Extended length (EL): Stroke (S)*2 +129MM/5.08" ( shortest possible ) |

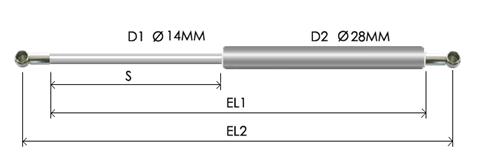

| Part # 865N | Metal ball socket ends B40N | ||
|---|---|---|---|
|
|
d2: M10x1.50 a: 35MM d1: ball Ø16MM |
1.38" |
| Extended length (EL): Stroke (S)*2 +129MM/5.08" ( shortest possible ) |
Options: |
|||
|---|---|---|---|
| - Valve: | V |  |
|
| - Dust boot: | D |  |
|
| - Rod protector: | R |  |
Stroke reduction 5MM |
| - Lockable protector: | L |  |
Stroke reduction 5MM |
| - Low temperature -45°C / -49°F | A | ||
| - High temperature 200°C / 392°F | B | ||
| - Foodgrade Oil | H1 | ||
| - Private label | P |
|
|
|||
| Product Inquiry example: | |||
| Part # | Stroke (S) MM/INCH | Length (EL2) MM/INCH | Force N/Lbs | Damping | Speed | Working temp | Options |
|---|---|---|---|---|---|---|---|
| 816N | 250 / 9.84 | 609 / 23.98 | 1555N / 350Lbs | Normal | Normal | Normal |
| Extended length (EL) of a gas compression spring is calculated when piston rod is fully extended |
| Force (F1) measured with piston rod 5MM/ 0.20" compressed |
| Progression rate will change depending on cylinder volume |
| Connecting parts are interchangeable, make your own combination or go to product category connecting parts to view more options |
| Please be advised that Extended Length EL2 will change depending on your choice of connecting parts |
